x-mas tree

Post by Georg Weinstabl » Tue Jul 12, 2011 9:00 pm

Hi,

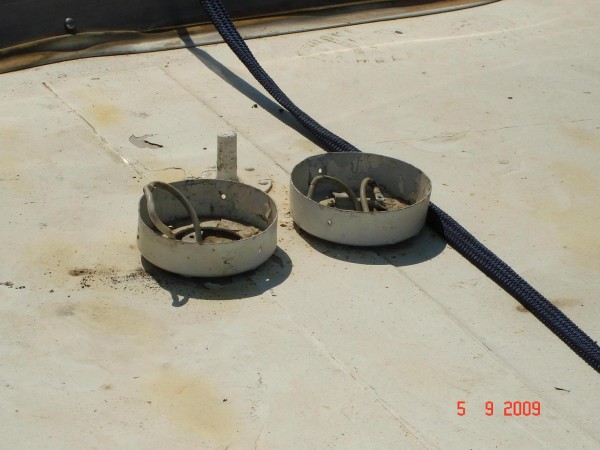

When I received my Volga from Georgia, I found two empty housings there, where once has been horns.
Empty housings.JPG
empty housings!
The design was very pure: two flat cylinders, very clean and very sobber. When looking at the earlier versions these had been more detailed. I do not want to say the earliers looked better, but I needed something like a horn and I did not want to have the typical flutes or sirenes that are installed on most runabouts.

So I made my way to a shop and purchased the typical US car horn of the 50ties and 60ties sold here as ''Chat-Chat''.

The design is a simple horn not very unlike the horizontal russian original however needed vertical installation. Against the odds I decided to turn this into a horizontal one, which required a special construction to be made.

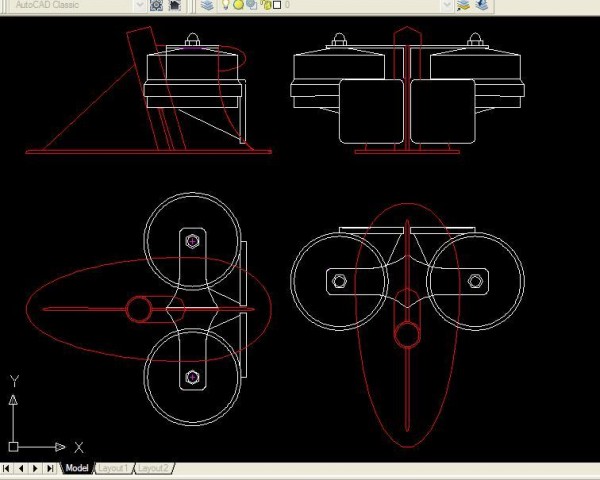

White are purchased horns, red is the stainless steel construction for them.

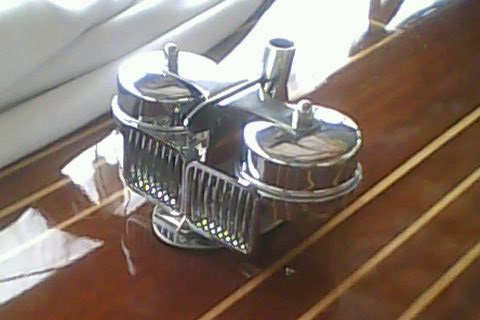

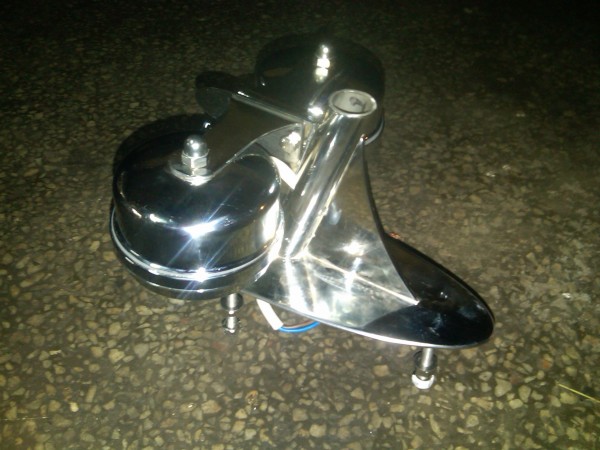

Having done this I decided to go for the ''ship-like'' x-mas tree, which combines functions of visual and audible signs. What came out of this is nothing new ... it has been made on many runabouts before, but maybe is only another version of it.

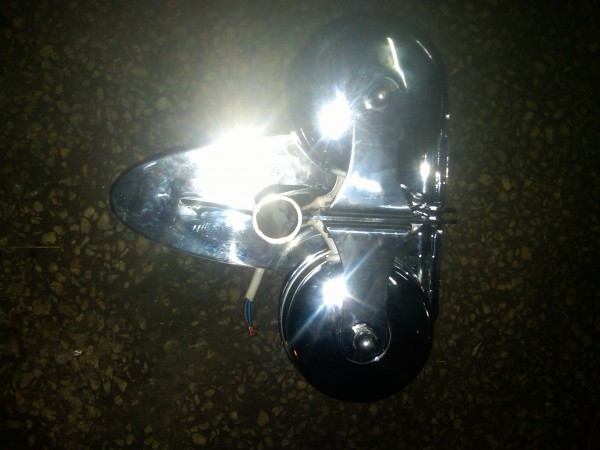

Top

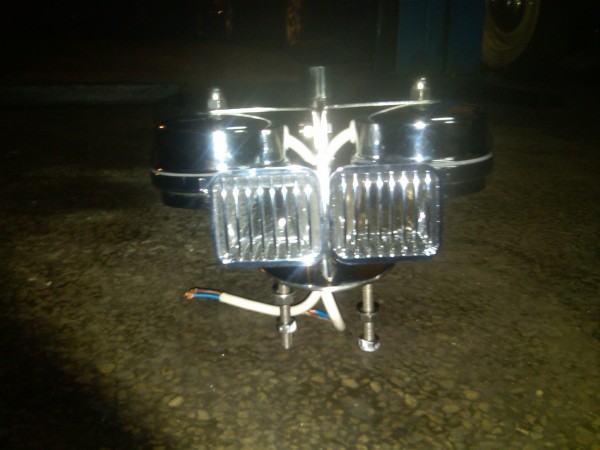

Front
back/side view

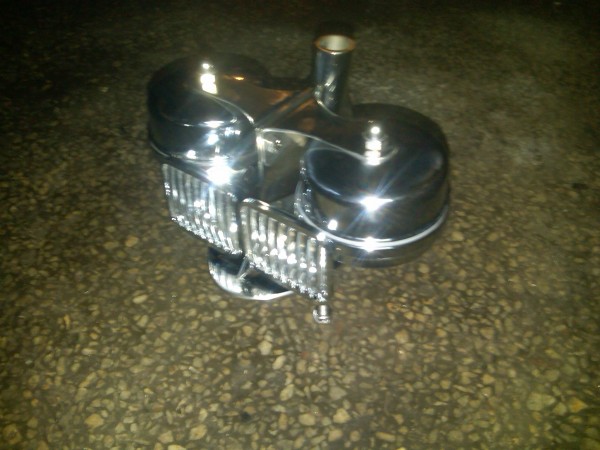

front/side/above
Workshop's cat seemed to have liked it, too!
Georg
Motorboat ''Flying Carpet''
Istanbul

User avatar
Georg Weinstabl
Posts: 248
Joined: Fri Sep 04, 2009 7:27 am

Re: x-mas tree

Post by Georg Weinstabl » Fri Aug 12, 2011 5:13 pm

Here are some more photos evidencing the slow progress we make on the boat.
tree

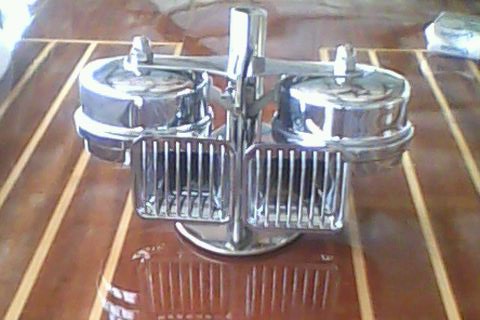

Front side view
Georg
Motorboat ''Flying Carpet''
Istanbul

User avatar
Georg Weinstabl
Posts: 248
Joined: Fri Sep 04, 2009 7:27 am

Re: x-mas tree

Post by Georg Weinstabl » Mon Jun 11, 2012 6:52 am

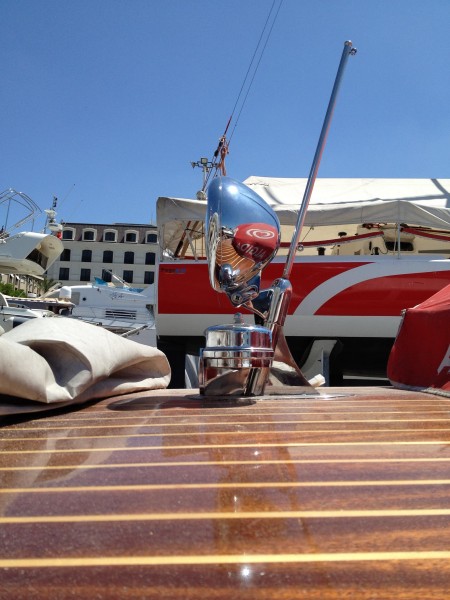

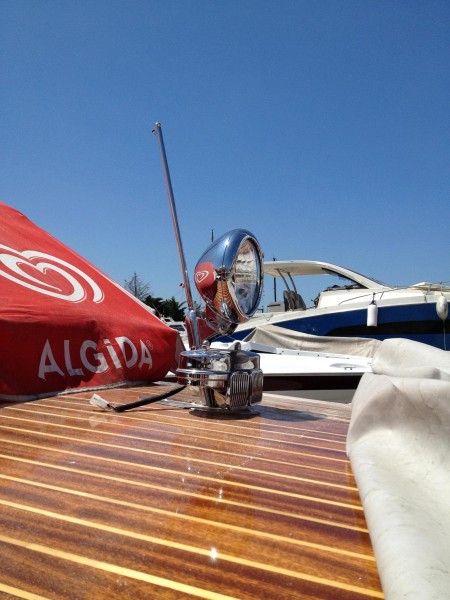

There was no progress here for a longer time, as I was looking for suitable lamp.The search for a suitable marine projector was in vain. Most design were white, square, too big or too ugly. I found this projector from a 50 cc Mojito and it is plastic chrome coated. I assume that it will not rust atleast.
Photo 324nn.JPG
with mounted lamp
Photo 323nn.JPG
from side
Photo 325nn.JPG
front
Georg
Motorboat ''Flying Carpet''
Istanbul

Mark
Posts: 97
Joined: Fri Jul 30, 2010 11:11 pm
Location: Near Amsterdam
Contact:

Re: x-mas tree

Post by Mark » Wed Jun 13, 2012 10:12 am

I like the bottle of beer on the dash!
Ow and like the tree as well..
If u don't mind I'll copy it,but instead of the flagpole a VHF antenna.


Kind regards,
Mark
Flying low in your hydro
find me on facebook:mark van Rijzen.

User avatar
Georg Weinstabl
Posts: 248
Joined: Fri Sep 04, 2009 7:27 am

Re: x-mas tree

Post by Georg Weinstabl » Sat Jun 16, 2012 8:33 am

when you copy this please with beer bottle! i can provide you with autocad drawings and with the equipment list.
Georg
Motorboat ''Flying Carpet''
Istanbul

Mark
Posts: 97
Joined: Fri Jul 30, 2010 11:11 pm
Location: Near Amsterdam
Contact:

Re: x-mas tree

Post by Mark » Mon Jun 18, 2012 9:13 pm

If u will! yess plz!

I have send u a email through the forum.
The bottle pic will come!

Mark.
Flying low in your hydro
find me on facebook:mark van Rijzen.

User avatar
Georg Weinstabl
Posts: 248
Joined: Fri Sep 04, 2009 7:27 am

Re: x-mas tree

Post by Georg Weinstabl » Thu Jun 28, 2012 6:41 am

Dear Mark,

Did you receive your drawing?
Georg
Motorboat ''Flying Carpet''
Istanbul

Mark
Posts: 97
Joined: Fri Jul 30, 2010 11:11 pm
Location: Near Amsterdam
Contact:

Re: x-mas tree

Post by Mark » Thu Jun 28, 2012 11:06 pm

Hay Georg,

I received your original drawing.
In your second mail you wrote that if i was not in a hurry,
You where able to make a better drawing?

I replied to that one..
Checked it... was replied to the forum admin..
gonna do it again..


Mark
